modelo: |
CO-630B |
Crimping Force: |
30T |
Saklaw ng Crimping: |
150-630mm2 |
Pangalan: |
Hydaaulic Cable Crimping Tools |
ulo: |
Heksagono |
Stroke: |
24mm |

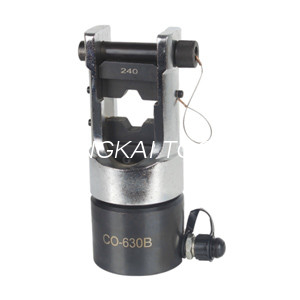

CO-630B hydraulic cable crimping tool, motorized hydralulic compressor, hydraulic crimping head
1. Donghuan Brand
2. Crimping force 30T
3. Crimping range 150-630mm2
4. Ang mamatay ay maaaring gawin nang naaayon
5. Hydraulic crimping head para sa Heksagono
6. Magtrabaho gamit ang 70Mpa Hydraulic pump
Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2
Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2
|
Numero ng item |
16101 | 16101A | 16101B | 16101C |
|
Modelo |
CO-630B | CO-630A | CO-1000 | CO-400 |
|
Crimping puwersa |
300KN | 350KN | 550KN | 200KN |
|
Crimping saklaw |
150-630mm² | 150-630mm² | 400-1000mm² | 16-400mm² |
| Crimping uri |
hexagon crimping |
hexagon crimping |
hexagon crimping |
hexagon crimping |
|
Namatay |
150,185,240,300, 400,500,630mm² |
150,185,240,300, 400,500,630mm² |
400,500,630, 800,1000mm² |
16,25,35,50, 70,95,120,150, 185,240,300,400mm² |
|
Stroke |
24mm | 24mm | 26mm | 24mm |
|
Taas |
humigit-kumulang 275mm | humigit-kumulang.350mm | humigit-kumulang.400mm | humigit-kumulang 250mm |
|
(KG) Timbang |
humigit-kumulang N.W11.5KG G.W20KG |
humigit-kumulang N.W16.7KG G.W25.5KG |
humigit-kumulang N.W32KG G.W39KG |
humigit-kumulang N.W5.4KG G.W10KG |
|
Package |
kahoy na kaso | kahoy na kaso | kahoy na kaso | kahon ng papel |
Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2
Paggawa gamit ang manual hydraulic pump o electric hydraulic pump(70MPa)
