modelo: |
SHDN508 |
sheave: |
3 |
Na-rate na Load: |
40KN |
Pangalan: |
Stringing Blocks |
Materyal: |
MC Nylon Sheave |
hindi: |
10102 |

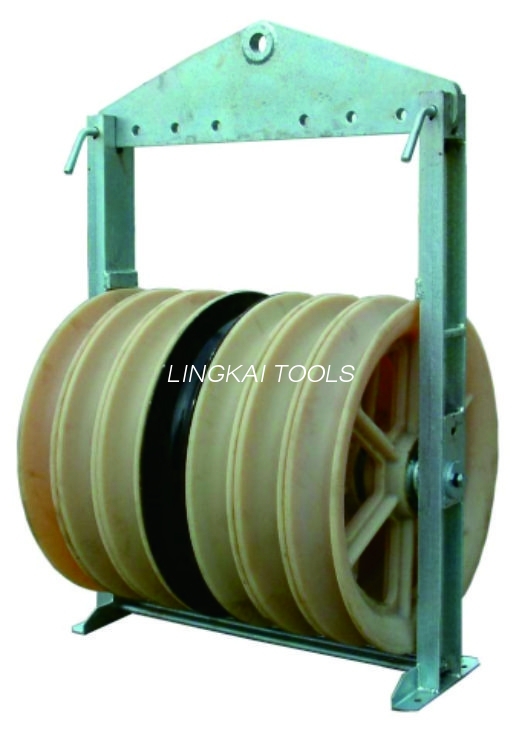

508mm Twin Bundled Conductor Rubber Lined MC Nylon Wwheel Transmission Stringing Block
508 mm stringing blocks

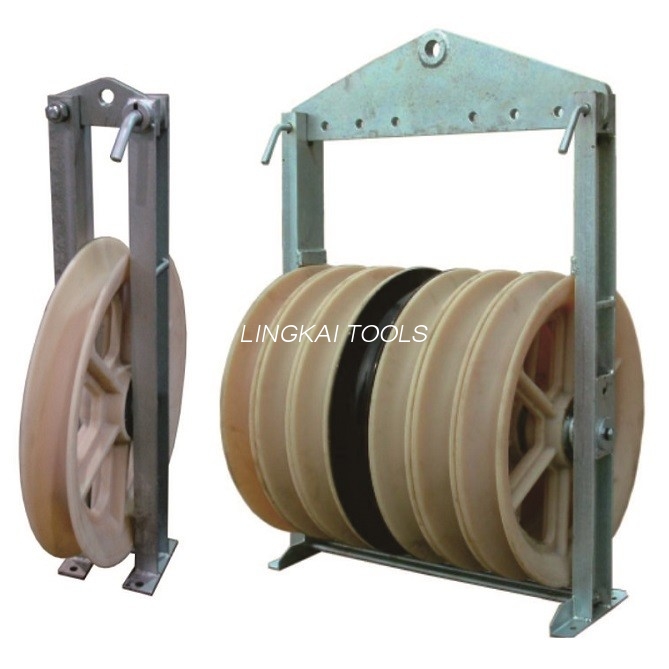

508 mm stringing blocks ay karaniwang ginagamit para sa stringing medium size conductor (17-25 mm) sa overhead transmission line construction. Nagdisenyo kami ng mga serye ng mga stringing block na ito para sa iisang conductor, 2 bundle na conductor at 4 na bundle na conductor stringing. 1. Pinakamataas na angkop na conductor ACSR400. Configuration: 2. Dimensyon ng sheave ( diameter sa labas × diameter ng ugat × lapad ng sheave) Φ508 ×Φ408 × 75 (mm) 3. Maaaring i-customize ang dimensyon ng sheave Φ508 ×Φ408 ×100 (mm).
| Numero ng item | Modelo | Bilang ng mga bigkis | Rated load (kN) | Timbang (kg) |
Mga tampok |
| 10101 | SHD508 | 1 | 20 | 18 | Goma na may linyang aluminyo na sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Gitna : Cast steel sheave Konduktor : Goma na may linyang aluminyo na bigkis |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Gitna : MC nylon sheave Konduktor : Goma na may linyang aluminyo na bigkis |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
